Little Dot DP_I Digital Audio Player

Postby DavidZheZhe » May 13th, '10, 21:59

Little Dot DP_I Digital Audio Player

Availability: Available!

Price: 439 USD

Shipping:
  • North America (USA, Canada) and Oceania: 29 USD
  • Western Europe: 35 USD
  • East Asia: 29 USD
  • Please inquire for other destinations


Introduction:
The Little Dot DP_I is a digital audio player for the critical listener, supporting both lossy and lossless file formats! The Little Dot DP_I can function as a stand-alone digital audio player as well as act as a pure digital transport for use with an external DAC! SD card and USB input allows one to connect external hard drives with music for playback. A user swappable headphone amp module (currently one module for full-sized headphones, and another for driving highly sensitive IEMs exist) allows compatibility with any headphone - from highly sensitive IEMs to full-sized high-impedance cans. More information coming soon!


Technical Specifications

Processor: ARM926EJ
DAC: Wolfson WM8740
Digital Transceiver: Wolfson WM8804
Amplification: AD8397
SD Card Input (maximum 32GB)
Supported Formats: MP3, WAV, MWA, FLAC, APE, AAC
USB communication port (for firmware upgrade or read music files from external USB disk)
3.5mm headphone output jack
3.5mm LINE OUT
3.5mm optical digital S/PDIF input (line-out jack with integrated DAC)
3.5mm optical digital S/DPIF output (headphone jack and integrated, can drive an external DAC)
digital volume control

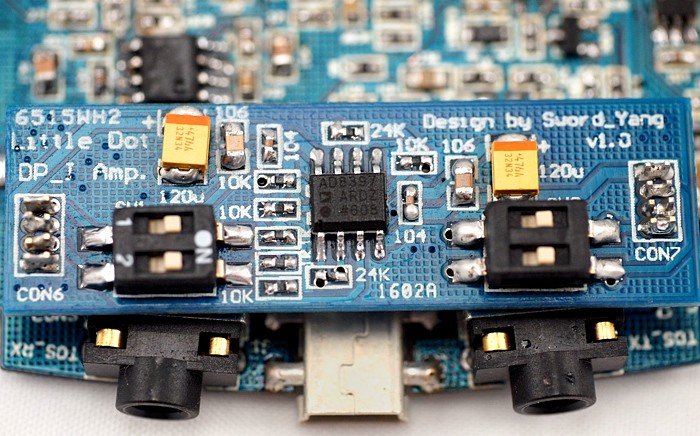

Replaceable headphone amp module:
a) High impedance (large headphones) drive module
b) low impedance (IEM) drive module
5-button control panel touch-operation of pure
LCD-screen vertical installation
3600 mA / H 755585 lithium-polymer battery (life 15 hours or more)
CNC machining aluminum alloy casing is made from a single aluminum core
Size: 115 (L) * 60 (W) * 20 (thickness) mm

More information coming soon!

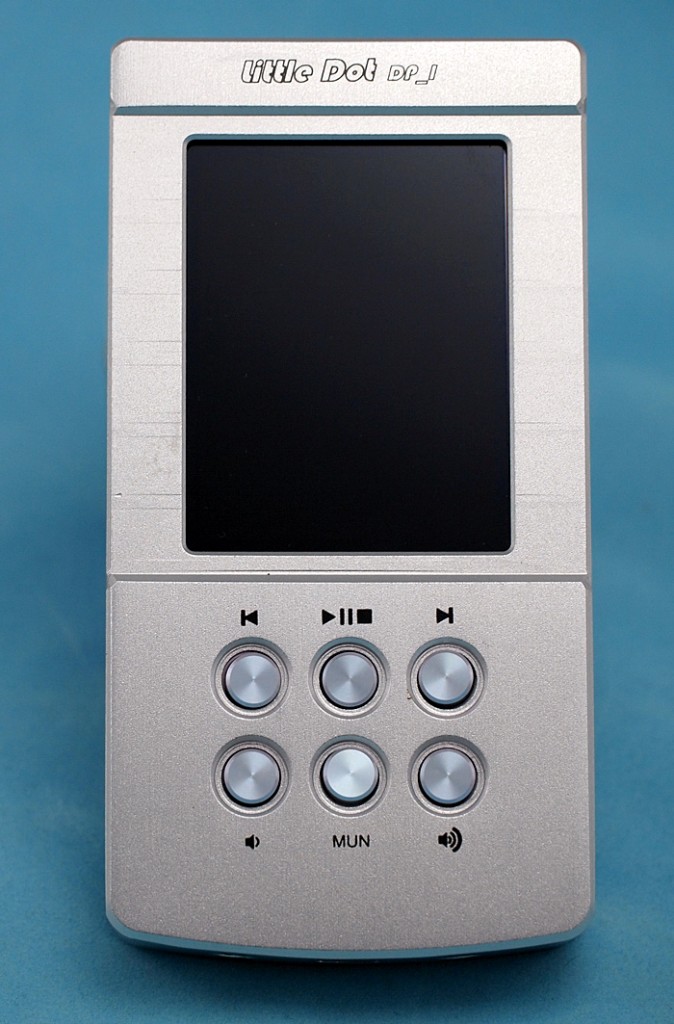

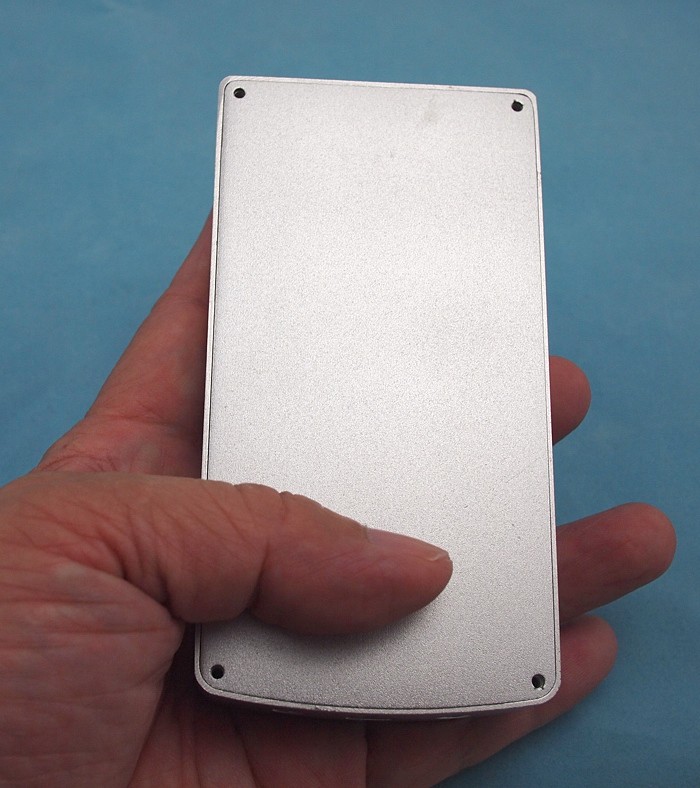

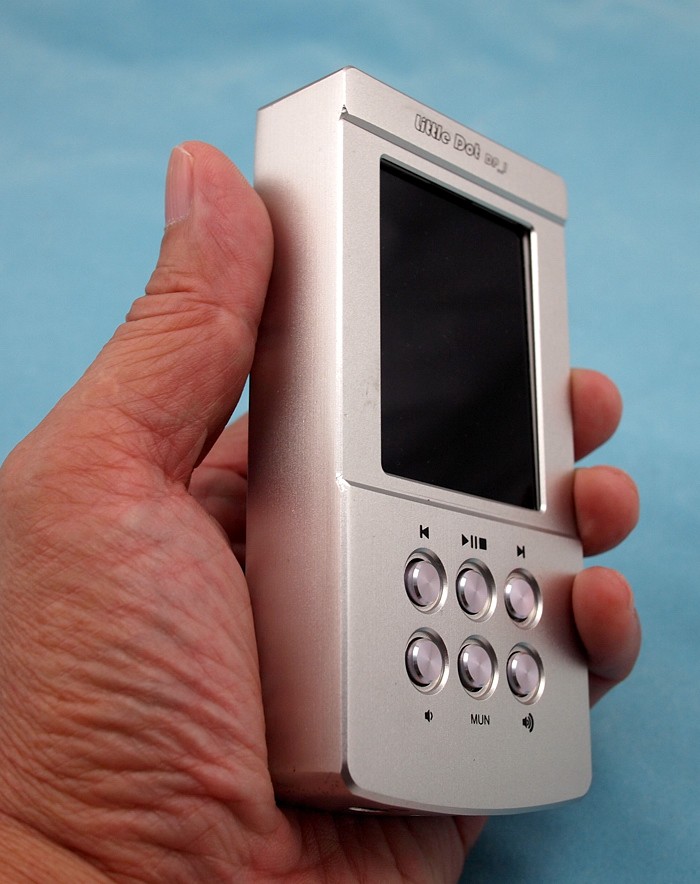

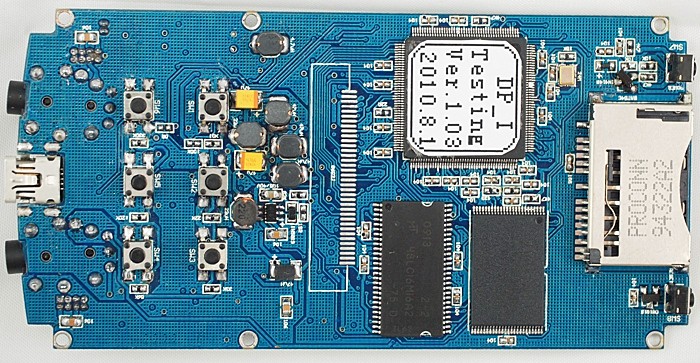

Engineering Prototype Photos



DavidZheZhe

Posts: 1587
Joined: Mar 14th, '06, 01:25

First Firmware Update

Postby DavidZheZhe » Nov 1st, '11, 03:34

Download the latest firmware here (version 2.3.0):

http://115.com/file/aquiomgb

Download the firmware update tool here:
http://115.com/file/aqup0cp1#
