Little Dot MK III Tube Headphone Amplifier / Pre-amplifier

Postby DavidZheZhe » Jan 10th, '10, 05:34

Little Dot MK III

Availability: Available!
PayPal Direct Invoice Price: 189 USD

Shipping:
  • North America (USA, Canada), Oceania: 45 USD
  • Western Europe: 51 USD
  • East Asia: 45 USD
  • Please inquire for other destinations

Additional Tubes:
  • 2x 5654/5725: 20 USD
  • 2x 6H6PI/6H6n: 35 USD
  • Upgrade and replace stock GE 5654 driver tubes with RTC 5654: 17 USD
  • Upgrade and replace stock GE 5654 driver tubes with M8100/CV4010: 45 USD

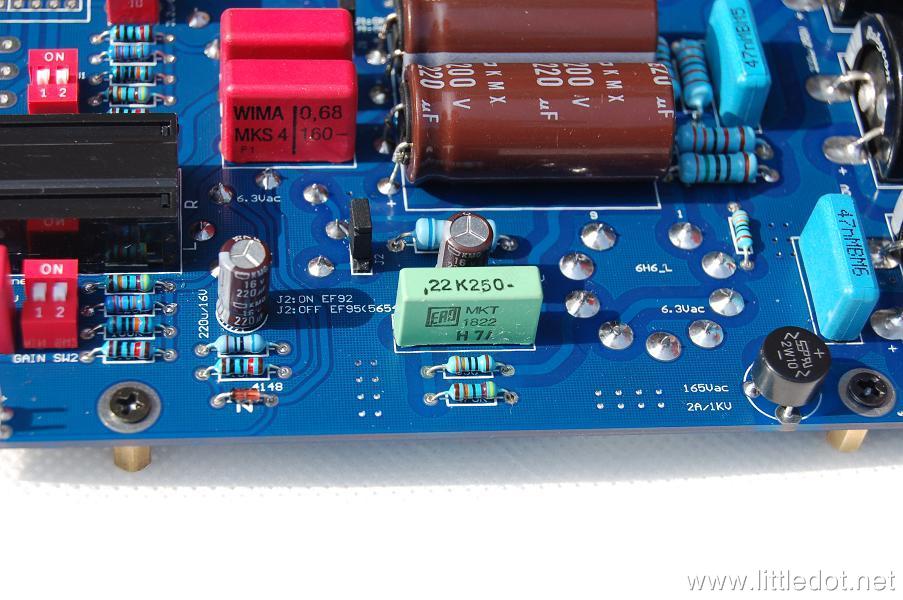

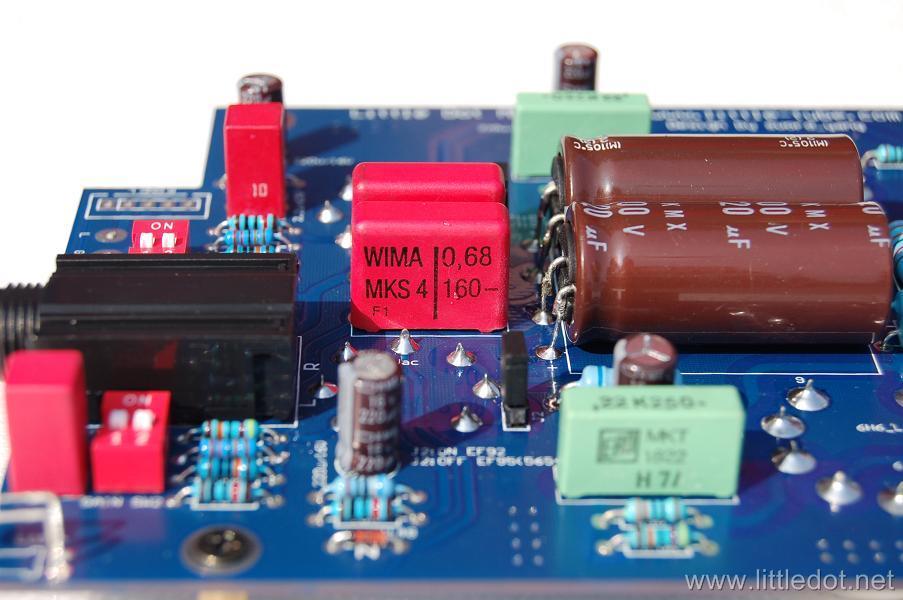

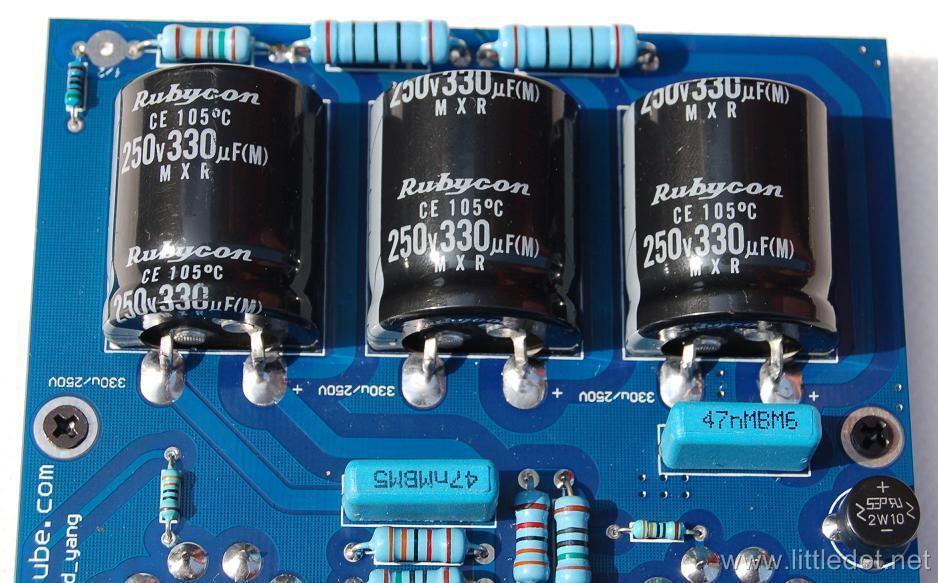

The Little Dot MK III succeeds our Little Dot II++ by improving upon it in every possible way. Boasting the highest stability and sound quality yet, the sound-stage realism and imaging precision have improved dramatically over our previous amplifiers, and even at high volumes the Little Dot MK III delivers a smooth, non-fatiguing sound with no hint of dynamic compression or imaging fuzz. Of course the liquid warm midrange tube lovers expect is here in spades, balancing right in with a dynamic low-end and a sweet, airy treble. Tracking precision with low distortion is provided by an ALPS-16 potentiometer, and Rubycon, German WIMA and ERO capacitors ensure the internal circuitry is built with quality in mind.

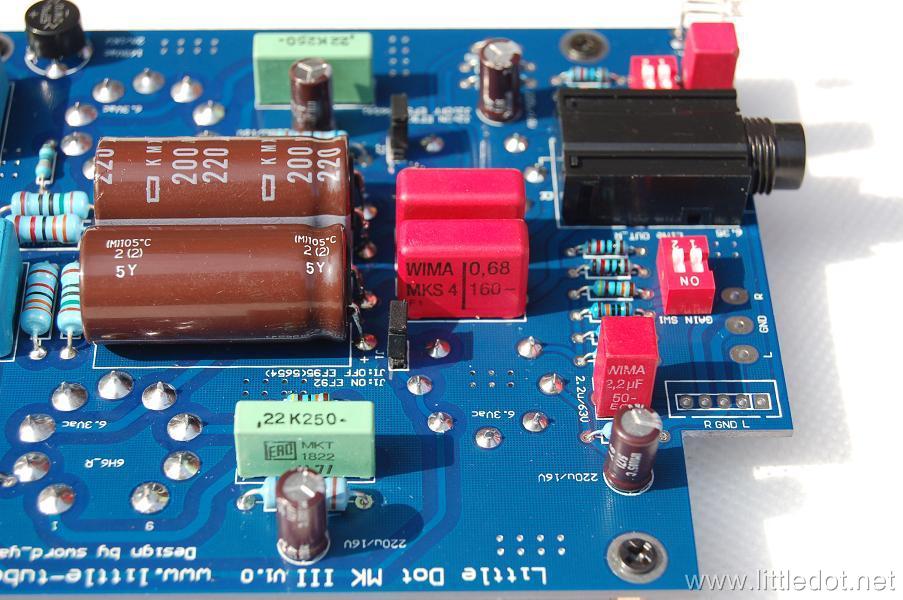

The Little Dot MK III also adds in user-tweaking options such as two gain switches to delivery maximum compatibility with all your headphones, regardless of impedance or sensitivity. Also available for the very first time in a Little Dot amplifier, is an internal jumper to allow use with a wider range of driver tube-rolling, including the EF92, CV131, WE403A/B, GE5654, M8100, CV4010, EF95, 6JI as well as all equivalents to these vacuum tubes!


See what people are saying about the Little Dot MKIII:

Stereophile May 2010 Edition (Sam's Space)
Little Dot MK III Review @ Compudio
Little Dot MK III Review @ Head-Fi
Little Dot MK III User Review (Rexbass)


Technical Specifications:


  • SEPP (Single-Ended Push Pull) OTL in Class-A
  • Frequency response: 12 hz~100 Khz (-1dB)
  • THD+N: 0.15% (80 mW @300 ohm)
  • Power Output:
  • 350 mW @ 300/600 ohm
  • 300 mW @ 120 oh
  • 100 mW @ 32 ohm
  • Variable Gain: 3,4,5, or 10x
  • Recommended Load Impedance: 32 ohm~600 ohm
  • Input Impedance: 50K ohms
  • Pre-Amplifier Output Impedance: 600 ohms
  • Pre-Amplifier Gain: 3-10x (also controlled via gain switches)
  • Pre-Amplifier Voltage: 10V RMS
  • Power Consumption: 30W (228V * 0.130A)
  • Pre-Amplification circuit includes both driver and power tubes

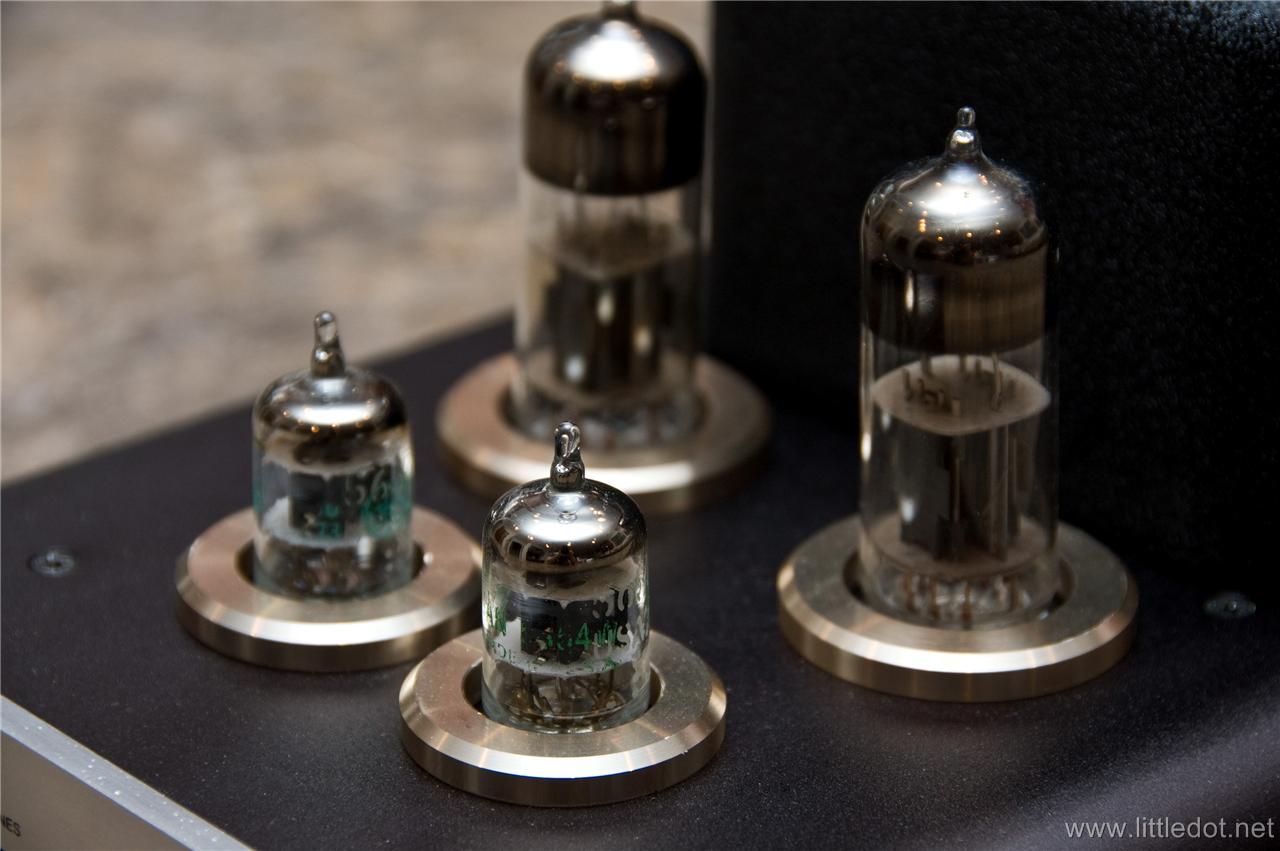

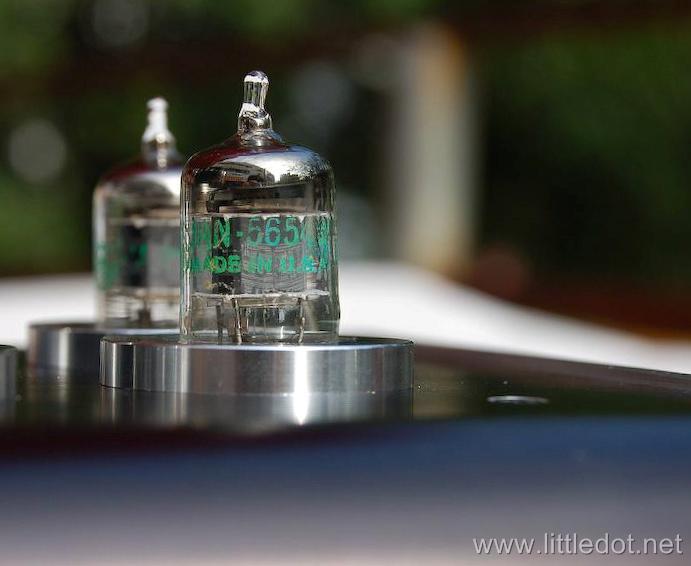

  • Driver Tubes: 2x 5654 (5725)

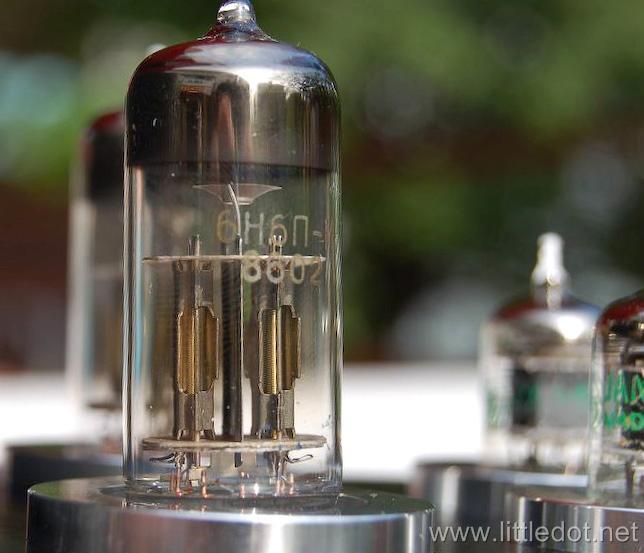

  • Power Tubes: 2x 6H6PI (6H6n, 6H6nN)
  • High quality aluminum chassis
  • Dimensions (Metric): 270mm deep by 175mm wide by 123mm high
  • Dimensions (English): 10.6 inches deep by 6.9 inches wide by 4.8 inches
  • Weight: 3 Kg or 6.6 lbs
  • Available in either 120VAC or 220VAC
  • In addition to direct purchase (Email us), also available on EBAY for our customer's convenience. Please search for Little Dot Amplifier sold under EBAY seller Davidzhezhe


Power Cord Note: Little Dot amplifiers ships with a standard Type-B power cord (American 3-pin or U-ground) suitable for use in areas such as North America, Japan, Taiwan, etc. If your country's outlets use other power cord types (ex. Schuko) you will need to provide you own power cord. You likely have several spares around your home, as any standard power cord (like your computer's power cord) will work perfectly fine. We do apologize for any inconvenience!
